FX0419 | BULGIN
Fuse holder, 6.3 x 32 mm, 16 A, 250 V, central Mounting, FX0419
Unit Price (€ / pc.)
12.3641 € *
Available: 66 pcs.
Available in 5 Days: 2,423 pcs. - if ordered today
Total Price:
12.36 € *
Price list
Quantity
Price per unit*
1 pcs.
12.3641 €
10 pcs.
10.8647 €
50 pcs.
10.1507 €
150 pcs.
9.6747 €
500 pcs.
9.1987 €
*incl. VAT plus shipping costs
Subject to prior sale

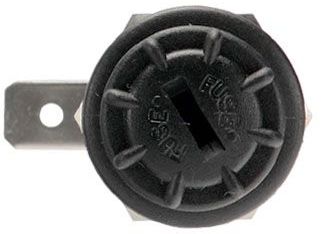

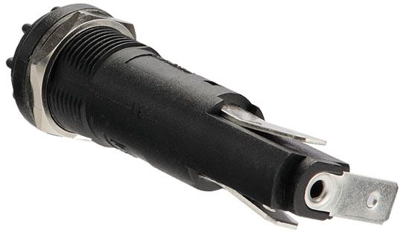

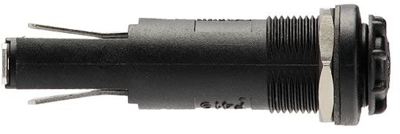

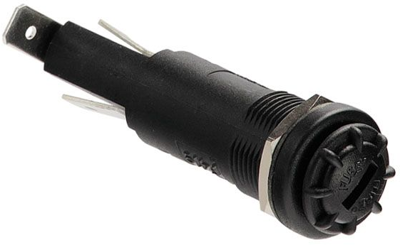

Fuse holders for 6.3 x 32 mm G fuses, type Bulgin FX0419.
Front panel mount, bushing mount, screw cap; Rated voltage: 250 VAC. Rated current: 16 A. Tab terminal: 6.3 mm. Degree of protection: IP 68. Operating temperatures: –20 to +85 °C. Approbations: UL, VDE, CSA.
Type: FX0419, fuse holder
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 16 A | |
| For Fuse | 6.3 x 32 mm | |
| Touch protection | PC2 | |
| Version of the cap | slotted | |
| Installation diameter | 16 mm | |
| Type of mounting | central Mounting | |
| Rated voltage | 250 V | |
| Connection | plug-in connection | |
| Version | closed |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
