FX0367/1 | BULGIN
Fuse holder, 5 x 20 mm, 10 A, 250 V, snap-in, FX0367/1
Unit Price (€ / pc.)
4.4268 € *
Available in 5 Days: 6,262 pcs. - if ordered today
Total Price:
4.43 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4268 €
10 pcs.
4.0936 €
25 pcs.
3.8199 €
50 pcs.
3.4629 €
*incl. VAT plus shipping costs
Subject to prior sale

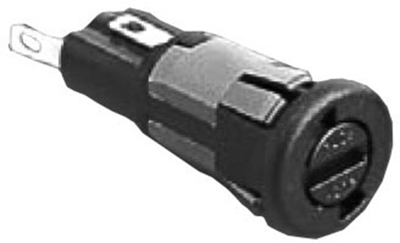

Fuse holders for 5 x 20 mm G fuses, type Bulgin FX0367.
Solder terminals, cap with bayonet lock; Rated current: 10 A. Rated voltage: 250 V. Operating temperatures: –20 to +85 °C. Certifications: UL, CSA, VDE. Inflammability: UL 94V-0.
Technical attributes (type, panel thickness): FX0367/1, 1.0 to 1.5 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Touch protection | PC2 | |
| Version of the cap | slotted | |
| Rated voltage | 250 V | |
| Connection | solder connection | |
| For Fuse | 5 x 20 mm | |
| Type of mounting | snap-in | |
| Version | closed | |
| Installation diameter | 12.8 mm | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TN |
| Customs tariff number | 85363010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
