FX0180/BK | BULGIN

Cable fuse holder, 6.3 x 32 mm, 10 A, 250 V, in-line mounting, FX0180/BK

Order No.: 46G6300
EAN: 4099889127553
MPN:
FX0180/BK
Series: Fuse Holders

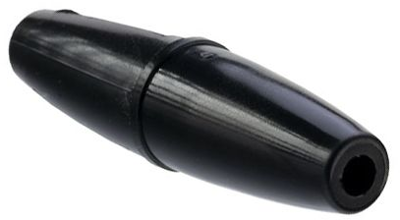

FX0180/BK BULGIN Fuse Holders Image 1

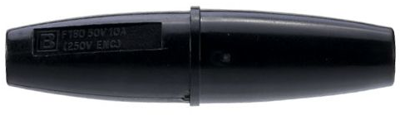

FX0180/BK BULGIN Fuse Holders Image 2
FX0180/BK BULGIN Fuse Holders Image 3
Image may differ
Unit Price (€ / pc.)
5.5335 € *
Available: 700 pcs.
Available in 5 Days: 3,688 pcs.
Leadtime: 22 Weeks **
Total Price:
5.53 € *
Price list
Quantity
Price per unit*
1 pcs.
5.5335 €
10 pcs.
4.8790 €
100 pcs.
4.2721 €
250 pcs.
4.1055 €
1000 pcs.
3.8437 €
*incl. VAT plus shipping costs
**Subject to prior sale

Line fuse holders, type Bulgin FX..80.

Screw terminals; Conductor cross-section: 1.0 mm². Rated current: 10 A. Rated voltage: 50 V (250 V for applications in closed systems). Test voltage: 2.0 kV. Certification: UL. Operating temperatures: –20 to +90 °C. Diameter: 15.5 mm.

Technical attributes (type, fuse size, color, length overall): FX0180/BK, 6,3 x 32 mm, black, 60.3 mm

Technical specifications
Installation diameter 15.5 mm
Degree of protection (IP) IP66
For Fuse 6.3 x 32 mm
Type of mounting in-line mounting
Rated current 10 A
Touch protection PC1
Version closed
Connection screw connection
Rated voltage 250 V
Logistics
Country of origin TN
Customs tariff number 85363010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
