PXD701/061/10/1 | BULGIN
Distribution strip 6-fold, free-standing, black, PXD701/061/10/1
Unit Price (€ / pc.)
109.7537 € *
Available in 5 Days: 22 pcs. - if ordered today
Total Price:
219.51 € *
Price list
Quantity
Price per unit*
2 pcs.
109.7537 €
5 pcs.
107.7664 €
*incl. VAT plus shipping costs
Subject to prior sale

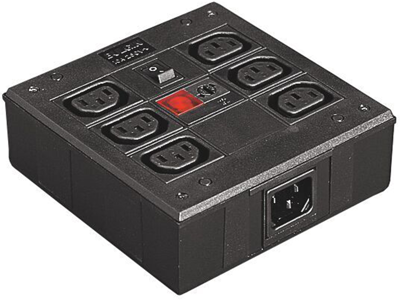

IEC distribution units, square, type Bulgin PXD701.
Square, six shuttered outlets, one inlet, fuse holder (5.0 x 20 mm), neon indicator and switch; Operating voltage: 250 VAC. Operating current: 10 A. Operating temperatures: –5.0 °C bis +60°C. Certifications: Semko.
Type: PXD701/061/10/1, non-filtered
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage IEC | 250 V | |
| Pin temperature | 70 °C | |
| Power switch available | Yes | |
| Number of poles switch | 1 pole | |
| Colour | black | |
| Assembly | free-standing | |
| Number of poles fuse holder | 1 pole | |
| Rated voltage UL/CSA | 250 V | |
| Rated current UL/CSA | 10 A | |
| Fuse holder present | Yes | |
| Switch illuminated | Yes | |
| Product type | distribution strip | |
| Version | 6-fold | |
| Rated current IEC | 10 A | |
| Line filter present | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85371098 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
