PXD301/550/01/1 | BULGIN

Distribution strip 5-fold, free-standing, black, PXD301/550/01/1

Order No.: 41F1735
EAN: 4099889863079
MPN:
PXD301/550/01/1
Series: IEC Connectors

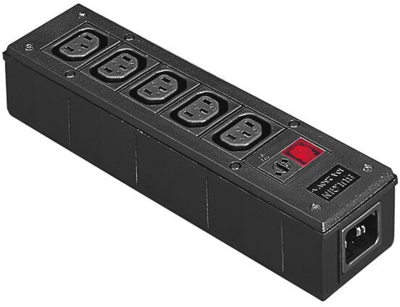

PXD301/550/01/1 BULGIN Device Connectors Image 1
PXD301/550/01/1 BULGIN Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
130.2931 € *
Available in 5 Days: 24 pcs. - if ordered today
Total Price:
260.59 € *
Price list
Quantity
Price per unit*
2 pcs.
130.2931 €
5 pcs.
112.4550 €
*incl. VAT plus shipping costs
Subject to prior sale

IEC distribution units, rectangular, type Bulgin PXD301.

Rectangular, five shuttered outlets, one inlet, fuse holder (5.0 x 20 mm), neon indicator; Operating voltage: 250 VAC. Operating current: 10 A. Operating temperatures: –5.0 °C bis +60°C. Certifications: Semko.

Type: PXD301/550/01/1, filtered

Technical specifications
Filter Property Value
Pin temperature 70 °C
Fuse holder present Yes
Assembly free-standing
Rated voltage UL/CSA 250 V
Power switch available No
Version 5-fold
Switch illuminated No
Rated current UL/CSA 10 A
Rated voltage IEC 250 V
Line filter present Yes
Product type distribution strip
Rated current IEC 10 A
Colour black
Logistics
Property Value
Country of origin TN
Customs tariff number 85371098
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
