PX0783/10/63 | BULGIN

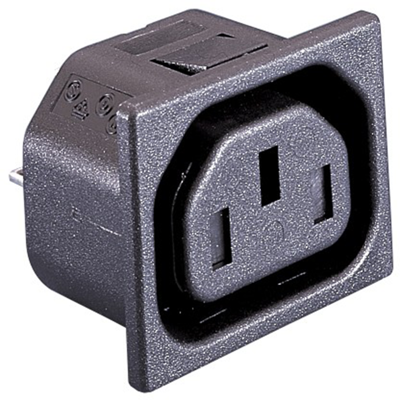

Panel socket F, 3 pole, snap-in, plug-in connection, black, PX0783/10/63
Unit Price (€ / pc.)
9.3772 € *
Available in 5 Days: 1,447 pcs. - if ordered today
Total Price:
9.38 € *
Price list
Quantity
Price per unit*
1 pcs.
9.3772 €
10 pcs.
8.6275 €
50 pcs.
7.8540 €
100 pcs.
7.0686 €
*incl. VAT plus shipping costs
Subject to prior sale
Snap-fit to panel IEC power outlets, type Bulgin PX0783.
Snap-fit to panel. With child protection; Operating voltage: 250 VAC. Operating current: 10 A. Contact resistance: max. 10 mohm. Operating temperatures: –40 °C to +70 °C. Certifications: ENEC 10, VDE, UL, CSA. Inflammability: UL 94 V-0.

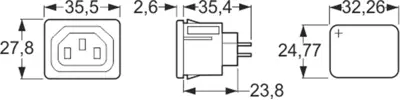

Technical attributes (type, termination, panel thickness): PX0783/10/63, 6.3 mm, 1.0 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 250 V | |
| Rated voltage IEC | 250 V | |
| Pin number | 3 pole | |
| Power switch available | No | |
| Colour | black | |
| Rated current UL/CSA | 15 A | |
| Connection | plug-in connection | |
| Assembly | snap-in | |
| Pin temperature | 70 °C | |
| Panel thickness | 1 mm | |
| Rated current IEC | 10 A | |
| IEC designation | F | |
| Switch illuminated | No | |
| Product type | panel socket |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
