PX0599 | BULGIN

Jack C19, 3 pole, cable assembly, screw connection, 2.5 mm², black, PX0599

Order No.: 41F1726
EAN: 4099889863048
MPN:
PX0599
Series: IEC Connectors

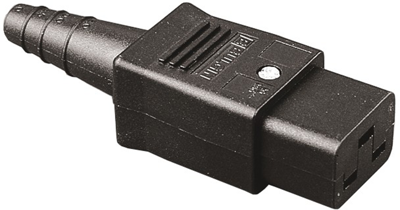

PX0599 BULGIN Device Connectors Image 1

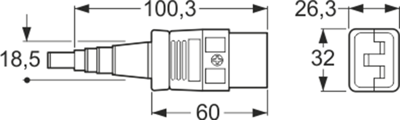

PX0599 BULGIN Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
14.7917 € *
Available: 43 pcs.
Available in 5 Days: 285 pcs. - if ordered today
Total Price:
14.79 € *
Price list
Quantity
Price per unit*
1 pcs.
14.7917 €
10 pcs.
13.0424 €
50 pcs.
12.1499 €
150 pcs.
11.6025 €
500 pcs.
11.0313 €
*incl. VAT plus shipping costs
Subject to prior sale

C10 straight female IEC cable connectors, type Bulgin PX0599.

For cable assembly, rewirable, screw terminals; Operating voltage: 250 VAC. Operating current: 16 A. Cable entry: 7.6 to 12.6 mm. Operating temperatures: –40 °C to +70 °C. Certifications: ENEC 10, VDE, UL, CSA, CCC. Inflammability: UL 94 V-0.

Type: PX0599, C10 straight female IEC power connector

Technical specifications
Filter Property Value
Switch illuminated No
Assembly cable assembly
Rated voltage UL/CSA 250 V
Rated current UL/CSA 20 A
Cable cross-section 2.5 mm²
Cable diameter 12 mm
Pin temperature 70 °C
Fuse holder present No
Design straight
Colour black
Pin number 3 pole
Rated voltage IEC 250 V
Product type jack
Line filter present No
IEC designation C19
Rated current IEC 16 A
Connection screw connection
Power switch available No
Logistics
Property Value
Customs tariff number 85366990
Country of origin TN
Compliance
Property Value
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
