PX0598/15/63 | BULGIN

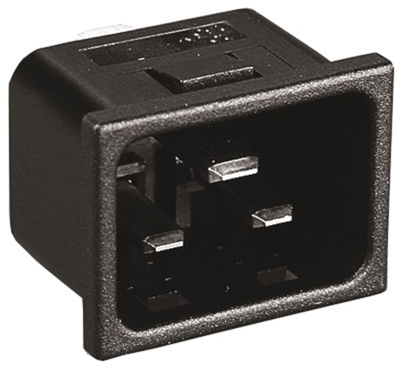

Panel plug C20, 3 pole, snap-in, plug-in connection, black, PX0598/15/63
Unit Price (€ / pc.)
4.4506 € *
Available: 35 pcs.
Total Price:
4.45 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4506 €
10 pcs.
4.1055 €
50 pcs.
3.7366 €
100 pcs.
3.3677 €
*incl. VAT plus shipping costs
Subject to prior sale

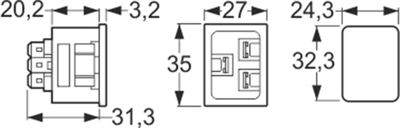

C20 snap-fit to panel IEC power inlets, type Bulgin PX0598.
Snap-fit to panel; Termination: 6.3 mm tab. Panel thickness: 1.5 mm. Operating voltage: 250 VAC. Operating current: 16 A. Operating temperatures: –40 °C to +70 °C. Certifications: ENEC 10, VDE, UL, CSA. Inflammability: UL 94 V-0.
Type: PX0598/15/63, snap-fit to panel IEC power inlet
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 250 V | |
| Rated voltage IEC | 250 V | |
| Pin number | 3 pole | |
| Power switch available | No | |
| Colour | black | |
| Rated current UL/CSA | 20 A | |
| Connection | plug-in connection | |
| Assembly | snap-in | |
| Fuse holder present | No | |
| Line filter present | No | |
| Pin temperature | 70 °C | |
| Panel thickness | 1.5 mm | |
| Design | straight | |
| Rated current IEC | 16 A | |
| IEC designation | C20 | |
| Switch illuminated | No | |
| Product type | panel plug |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
