PX0587 | BULGIN

Jack C13, 3 pole, cable assembly, screw connection, black, PX0587

Order No.: 41F1700
EAN: 4099889862782
MPN:
PX0587
Series: IEC Connectors

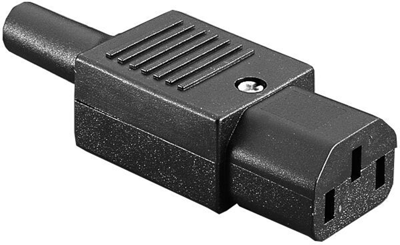

PX0587 BULGIN Device Connectors Image 1

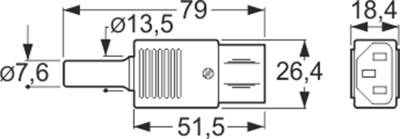

PX0587 BULGIN Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
5.7120 € *
Available: 319 pcs.
Available in 5 Days: 8,514 pcs. - if ordered today
Total Price:
5.71 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7120 €
10 pcs.
5.0099 €
100 pcs.
4.4030 €
250 pcs.
4.2364 €
1000 pcs.
3.9746 €
*incl. VAT plus shipping costs
Subject to prior sale

Jack, PX0587, BULGIN

This connector offers solutions to most mains powered equipment and cable applications.

Features

  • Cable mounting
  • Rewireable
  • Screw terminals
Technical specifications
Filter Property Value
Switch illuminated No
Assembly cable assembly
Rated voltage UL/CSA 250 V
Rated current UL/CSA 10 A
Cable diameter 7.6 mm
Pin temperature 70 °C
Fuse holder present No
Design straight
Colour black
Pin number 3 pole
Rated voltage IEC 250 V
Product type jack
Line filter present No
IEC designation C13
Rated current IEC 10 A
Connection screw connection
Power switch available No
Logistics
Property Value
Customs tariff number 85366990
Country of origin TN
Compliance
Property Value
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
