PX0580/63 | BULGIN

Panel plug C14, 3 pole, screw mounting, plug-in connection, black, PX0580/63

Order No.: 41F1706
EAN: 4099889862843
MPN:
PX0580/63
Series: IEC Connectors

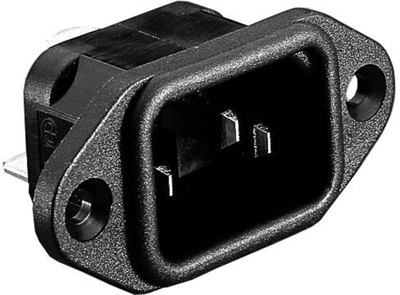

PX0580/63 BULGIN Device Connectors Image 1
PX0580/63 BULGIN Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
4.0222 € *
Available: 58 pcs.
Next delivery: 200 pcs. on 2025-07-09
Available in 5 Days: 2,815 pcs. - if ordered today
Total Price:
4.02 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0222 €
25 pcs.
3.4391 €
100 pcs.
3.1297 €
250 pcs.
2.9988 €
1000 pcs.
2.7251 €
*incl. VAT plus shipping costs
Subject to prior sale

Flange mount IEC power inlets, type Bulgin PX0580.

Flange mount; Operating voltage: 250 VAC. Operating current: 10 A. Contact resistance: max. 10 mohm. Operating temperatures: –40 °C to +70 °C. Certifications: ENEC 10, VDE, UL, CSA. Inflammability: UL 94 V-0.

Technical attributes (type, termination, dimension A): PX0580/63, 6.3 mm, A 27.2 mm

Technical specifications
Filter Property Value
Assembly screw mounting
Fuse holder present No
Colour black
Switch illuminated No
Line filter present No
Rated voltage IEC 250 V
IEC designation C14
Pin temperature 70 °C
Pin number 3 pole
Connection plug-in connection
Rated current UL/CSA 15 A
Rated current IEC 10 A
Product type panel plug
Design straight
Power switch available No
Rated voltage UL/CSA 250 V
Logistics
Property Value
Country of origin TN
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
