PX0580/28 | BULGIN

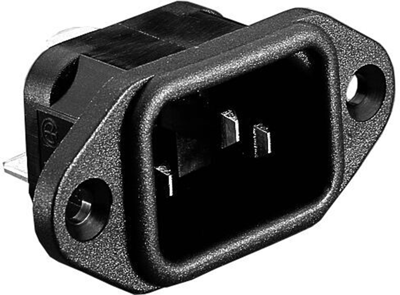

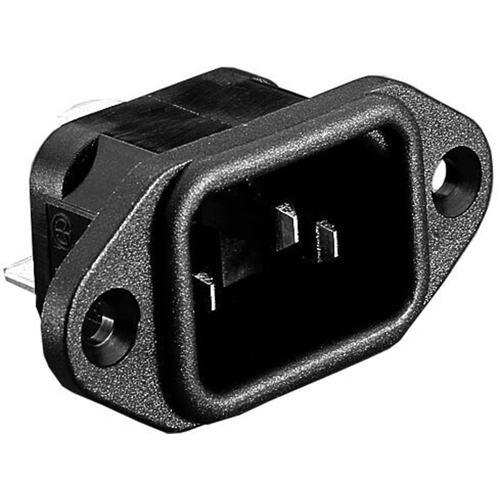

Panel plug C14, 3 pole, screw mounting, plug-in connection, black, PX0580/28
Unit Price (€ / pc.)
2.6180 € *
Available: 7 pcs.
Available in 5 Days: 3,443 pcs. - if ordered today
Total Price:
2.62 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6180 €
25 pcs.
2.2015 €
100 pcs.
2.0468 €
250 pcs.
1.9278 €
1000 pcs.
1.7969 €
*incl. VAT plus shipping costs
Subject to prior sale
Flange mount IEC power inlets, type Bulgin PX0580.
Flange mount; Operating voltage: 250 VAC. Operating current: 10 A. Contact resistance: max. 10 mohm. Operating temperatures: –40 °C to +70 °C. Certifications: ENEC 10, VDE, UL, CSA. Inflammability: UL 94 V-0.
Technical attributes (type, termination, dimension A): PX0580/28, 2.8 mm, A 25.7 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switch illuminated | No | |
| Assembly | screw mounting | |
| Rated voltage UL/CSA | 250 V | |
| Rated current UL/CSA | 15 A | |
| Pin temperature | 70 °C | |
| Fuse holder present | No | |
| Design | straight | |
| Colour | black | |
| Pin number | 3 pole | |
| Rated voltage IEC | 250 V | |
| Product type | panel plug | |
| Line filter present | No | |
| IEC designation | C14 | |
| Rated current IEC | 10 A | |
| Connection | plug-in connection | |
| Power switch available | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
