PF0030/PC | BULGIN
Combination element plug C14, 3 pole, PCB mounting, solder connection, black, PF0030/PC
Unit Price (€ / pc.)
9.7818 € *
Available: 145 pcs.
Available in 5 Days: 550 pcs. - if ordered today
Total Price:
9.78 € *
Price list
Quantity
Price per unit*
1 pcs.
9.7818 €
10 pcs.
8.9964 €
50 pcs.
8.1753 €
100 pcs.
7.3661 €
*incl. VAT plus shipping costs
Subject to prior sale

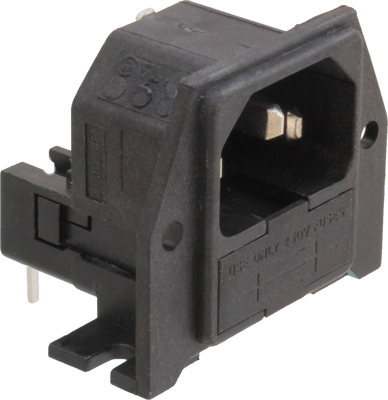

PCB flange mount fused IEC power inlets, type Bulgin PF0030/PC.
Flange mount, safety cartridge (twin fused, 5 x 20 mm); Operating voltage: 250 VAC. Operating current: 10 A. Contact resistance: max. 15 mohm. Operating temperatures: –20 °C to +70 °C. Certifications: UL, CSA. Inflammability: UL 94 V-0.
Type: PF0030/PC, PCB flange mount fused IEC power inlet
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 250 V | |
| Rated voltage IEC | 250 V | |
| Pin number | 3 pole | |
| Power switch available | No | |
| Colour | black | |
| Rated current UL/CSA | 10 A | |
| Version | plug | |
| Connection | solder connection | |
| Assembly | PCB mounting | |
| Fuse holder present | Yes | |
| Line filter present | No | |
| Pin temperature | 70 °C | |
| Design | angled | |
| Rated current IEC | 10 A | |
| IEC designation | C14 | |
| Switch illuminated | No | |
| Product type | combination element |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
