BZV01/Z0000/11 | BULGIN

Combination element plug C14, 3 pole, snap-in, plug-in connection, black, BZV01/Z0000/11

Order No.: 41F1769
EAN: 4099889863307
MPN:
BZV01/Z0000/11
Series: IEC Connectors

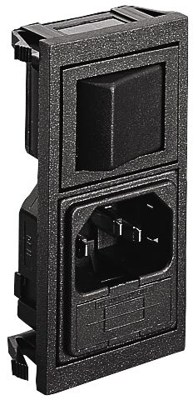

BZV01/Z0000/11 BULGIN Device Connectors Image 1
BZV01/Z0000/11 BULGIN Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
17.9095 € *
Available in 5 Days: 655 pcs. - if ordered today
Total Price:
214.91 € *
Price list
Quantity
Price per unit*
12 pcs.
17.9095 €
35 pcs.
15.5890 €
*incl. VAT plus shipping costs
Subject to prior sale

Plug, BZV01/Z0000/11, BULGIN

It has a compact design that occupies the minimum of panel area and a single rectangular mounting hole, it offers easy installation for this mains power entry module.

Features

  • Fused inlet with 6.3 mm tags
  • Double contact switch
Technical specifications
Filter Property Value
Pin temperature 70 °C
Panel thickness 3 mm
Fuse holder present Yes
Assembly snap-in
Rated voltage UL/CSA 250 V
Connection plug-in connection
Power switch available Yes
Number of poles switch 2 pole
Design straight
Version plug
Pin number 3 pole
Type of locking No
IEC designation C14
Switch illuminated Yes
Rated current UL/CSA 10 A
Rated voltage IEC 250 V
Line filter present No
Product type combination element
Swich colour red
Rated current IEC 10 A
Colour black
Logistics
Property Value
Country of origin TN
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
