BZV01/A0620/02 | BULGIN

Combination element plug C14, 3 pole, snap-in, plug-in connection, black, BZV01/A0620/02

Order No.: 41F1763
EAN: 4099889863246
MPN:
BZV01/A0620/02
Series: IEC Connectors

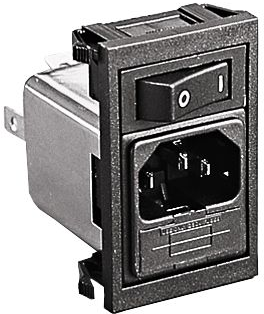

BZV01/A0620/02 BULGIN Device Connectors Image 1

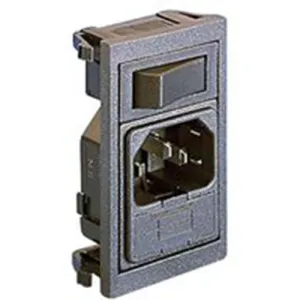

BZV01/A0620/02 BULGIN Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
66.2354 € *
Available in 5 Days: 11 pcs. - if ordered today
Total Price:
264.94 € *
Price list
Quantity
Price per unit*
4 pcs.
66.2354 €
10 pcs.
57.1557 €
*incl. VAT plus shipping costs
Subject to prior sale

Plug, BZV01/A0620/02, BULGIN

It has a compact design that occupies the minimum of panel area and a single rectangular mounting hole, it offers easy installation for this mains power entry module.

Features

  • Fused inlet with 6.3 mm tags
Technical specifications
Filter Property Value
Pin temperature 70 °C
Fuse holder present Yes
Assembly snap-in
Rated voltage UL/CSA 250 V
Connection plug-in connection
Power switch available Yes
Number of poles switch 1 pole
Version plug
Pin number 3 pole
IEC designation C14
Switch illuminated Yes
Rated current UL/CSA 10 A
Rated voltage IEC 250 V
Line filter present Yes
Product type combination element
Swich colour red
Rated current IEC 10 A
Colour black
Logistics
Property Value
Country of origin TN
Customs tariff number 85363010
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
