BZM27/Z0000/59B | BULGIN
Combination element plug C14, 3 pole, snap-in, plug-in connection, black, BZM27/Z0000/59B
Unit Price (€ / pc.)
20.0396 € *
Available in 5 Days: 35 pcs. - if ordered today
Total Price:
20.04 € *
Price list
Quantity
Price per unit*
1 pcs.
20.0396 €
10 pcs.
18.5521 €
25 pcs.
17.2788 €
50 pcs.
15.6604 €
*incl. VAT plus shipping costs
Subject to prior sale

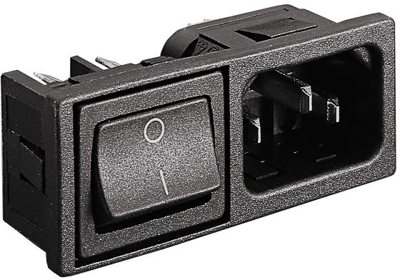

IEC power inlet modules, for snap-in mounting, type Bulgin BZM27.

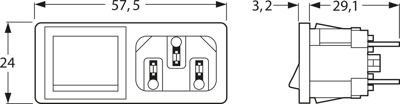

Compliant with IEC/EN 60320-1, with ON/OFF rocker switch. Red illumination; Housing material: thermoplastic, UL 94 V-0, 2-pole + PE. Connection type: 6.3 mm tabs, 10 A/250 VAC (UL/CSA 15 A/250 VAC). Switch: 2-pole, with 4.8 mm tabs, for snap-in mounting. Mounting cutout: 54.9 x 21.3 mm. Panel thickness: 1.5 mm. Operating temperatures: –40 to +70 °C. Certifications: ENEC 10, VDE, UL, CSA, CCC.
Type: BZM27/Z0000/59B, appliance connector with switch
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Swich colour | red | |
| Connection | plug-in connection | |
| Rated current IEC | 10 A | |
| Pin number | 3 pole | |
| Product type | combination element | |
| Rated current UL/CSA | 15 A | |
| Fuse holder present | No | |
| Switch illuminated | Yes | |
| Line filter present | No | |
| IEC designation | C14 | |
| Power switch available | Yes | |
| Pin temperature | 70 °C | |
| Rated voltage UL/CSA | 250 V | |
| Version | plug | |
| Assembly | snap-in | |
| Design | straight | |
| Rated voltage IEC | 250 V | |
| Number of poles switch | 2 pole | |
| Panel thickness | 1.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
