BZH01/Z0000/01 | BULGIN

Combination element plug C14, 3 pole, screw mounting, plug-in connection, black, BZH01/Z0000/01

Order No.: 41F1758
EAN: 4099889863192
MPN:
BZH01/Z0000/01
Series: IEC Connectors

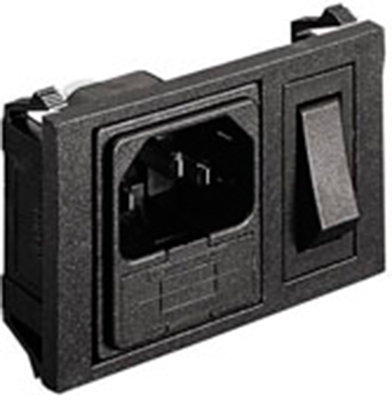

BZH01/Z0000/01 BULGIN Device Connectors Image 1
BZH01/Z0000/01 BULGIN Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
12.1142 € *
Available in 5 Days: 370 pcs. - if ordered today
Total Price:
12.11 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
12.1142 €

Plug, BZH01/Z0000/01, BULGIN

It has a compact design that occupies the minimum of panel area and a single rectangular mounting hole, it offers easy installation for this mains power entry module.

Features

  • Fused inlet with 6.3 mm tags
Technical specifications
Filter Property Value
Rated voltage IEC 250 V
Pin temperature 70 °C
Power switch available Yes
Swich colour black
Number of poles switch 1 pole
Colour black
Assembly screw mounting
Rated voltage UL/CSA 250 V
Rated current UL/CSA 10 A
Fuse holder present Yes
Design straight
IEC designation C14
Connection plug-in connection
Switch illuminated No
Product type combination element
Pin number 3 pole
Version plug
Rated current IEC 10 A
Line filter present Yes
Logistics
Property Value
Customs tariff number 85366990
Country of origin TN
Compliance
Property Value
Substance description Lead
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
