RFSMAEP | BULGIN

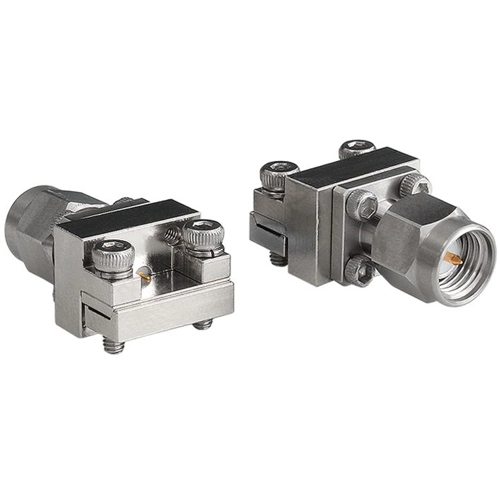

SMA plug 50 Ω, screw connection, straight, RFSMAEP
Unit Price (€ / pc.)
70.7574 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
70.76 € *
Price list
Quantity
Price per unit*
50 pcs.
70.7574 €
100 pcs.
69.0557 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMA plug, RFSMAEP, BULGIN
This SMA connector is semi-precision with 0.25 - 36 threaded coupling. Offering high performance all within a compact SMA (Sub Miniature version A) connector design, frequently used as standard for antennas, devices and various medical applications. Moreover, this sub-miniature sizes is also used in relatively small items of electronic equipment. Typically, 500 mating cycles, but care is needed to keep the mating surfaces clean.
Features
- Insulation resistance >5000 MOhm
- 50-ohm impedance
- Beryllium copper contact
Technical specifications
| Version | plug | |
| Design | straight | |
| Impedance | 50 Ω | |
| Contact connection | screw connection | |
| Contact material | Beryllium copper | |
| Connector | SMA |
Download
Logistics
| Country of origin | CN |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
