RFSMAA4JCCDQ | BULGIN

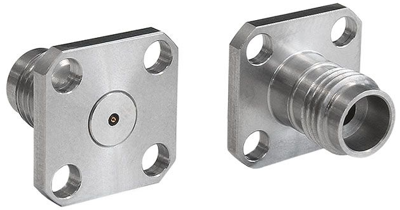

SMA flange socket 50 Ω, solder connection, straight, RFSMAA4JCCDQ

Order No.: 78F170
EAN: 4099891616847
MPN:
RFSMAA4JCCDQ
Series: SMA Series
RFSMAA4JCCDQ BULGIN Coaxial Connectors
Image may differ
Unit Price (€ / pc.)
31.1661 € *
Available in 5 Days: 75 pcs. - if ordered today
Total Price:
31.17 € *
Price list
Quantity
Price per unit*
1 pcs.
31.1661 €
10 pcs.
28.9408 €
25 pcs.
27.0130 €
50 pcs.
24.5616 €
*incl. VAT plus shipping costs
Subject to prior sale

SMA jack, RFSMAA4JCCDQ, BULGIN

This SMA connector is semi-precision with 0.25 - 36 threaded coupling. Offering high performance all within a compact SMA (Sub Miniature version A) connector design, frequently used as standard for antennas, devices and various medical applications. Moreover, this sub-miniature sizes is also used in relatively small items of electronic equipment. Typically, 500 mating cycles, but care is needed to keep the mating surfaces clean.

Features

  • Insulation resistance >5000 MOhm
  • 50-ohm impedance
  • Beryllium copper contact
Technical specifications
Filter Property Value
Contact connection solder connection
Design straight
Product type flange socket
Contact material beryllium copper
Connector SMA
Impedance 50 Ω
Logistics
Property Value
Country of origin CN
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
