RFSMAA2JEGIGHE | BULGIN

SMA flange socket 50 Ω, solder connection, straight, RFSMAA2JEGIGHE

Order No.: 78F179
EAN: 4099891616939
MPN:
RFSMAA2JEGIGHE
Series: SMA Series
RFSMAA2JEGIGHE BULGIN Coaxial Connectors
Image may differ
Unit Price (€ / pc.)
38.6155 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
38.62 € *
Price list
Quantity
Price per unit*
1 pcs.
38.6155 €
10 pcs.
36.2950 €
25 pcs.
33.7484 €
50 pcs.
31.0590 €
*incl. VAT plus shipping costs
Subject to prior sale

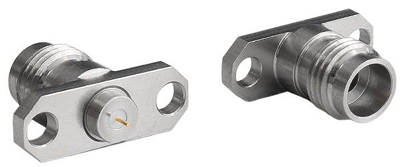

SMA jack, RFSMAA2JEGIGHE, BULGIN

This SMA connector is semi-precision with 0.25 - 36 threaded coupling. Offering high performance all within a compact SMA (Sub Miniature version A) connector design, frequently used as standard for antennas, devices and various medical applications. Moreover, this sub-miniature sizes is also used in relatively small items of electronic equipment. Typically, 500 mating cycles, but care is needed to keep the mating surfaces clean.

Features

  • Insulation resistance >5000 MOhm
  • 50-ohm impedance
  • Beryllium copper contact
Technical specifications
Filter Property Value
Connector SMA
Impedance 50 Ω
Design straight
Contact material beryllium copper
Contact connection solder connection
Product type flange socket
Logistics
Property Value
Country of origin CN
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
