PX0777 | BULGIN

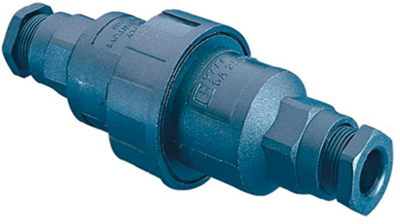

Cable connector, 3 pole, straight, cable Ø 3.5 to 8.0 mm, IP68, PX0777
Unit Price (€ / pc.)
22.4315 € *
Available in 5 Days: 602 pcs. - if ordered today
Total Price:
22.43 € *
Price list
Quantity
Price per unit*
1 pcs.
22.4315 €
10 pcs.
20.8250 €
25 pcs.
19.1590 €
50 pcs.
17.4573 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable connectors, type PX0777.
For 6.0 mm to 8.0 mm, with additional seals for 3.5 mm to 9.0 mm; Degree of protection: IP 68.
Technical attributes (type, connections, length): PX0777, water–proof cable connector
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current IEC | 1 A | |
| Connection | clamp connection | |
| Rated voltage IEC | 30 V | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP68 | |
| Design | straight | |
| Colour | black | |
| Version | cable connector | |
| Cable diameter | 3.5 to 8.0 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
