BXS001/1 | BULGIN
Battery holder for baby cell, 1 cell, panel mounting, BXS001/1
Unit Price (€ / pc.)
20.3252 € *
Available in 5 Days: 1,050 pcs. - if ordered today
Total Price:
20.33 € *
Price list
Quantity
Price per unit*
1 pcs.
20.3252 €
10 pcs.
18.8139 €
25 pcs.
17.5168 €
50 pcs.
15.8746 €
*incl. VAT plus shipping costs
Subject to prior sale

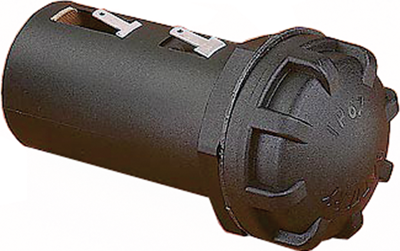

Battery holder with front panel flange for Baby cells, type Bulgin BSX00.
With screw lock, 2.8 mm tab terminals or solder connection; Degree of protection: IP 67. Operating temperatures: –30 to +70 °C. Inflammability: UL 94 V-0. Diameter: 42 mm. Panel thickness: max. 3.2 mm.
Technical attributes (type, number of cells, mounting depth): BXS001/1, 1 cell, 61.4 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Usage | baby cell | |
| Number of cells | 1 | |
| Assembly | panel mounting |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
