HCPL2530 | Broadcom

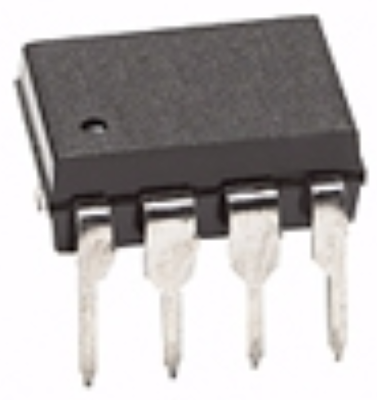

Broadcom optocoupler, DIP-8, HCPL2530
Discontinued
Unit Price (€ / pc.)
1.6898 € *
Available: 7 pcs.
Total Price:
1.69 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6898 €
5 pcs.
1.5827 €
150 pcs.
1.4637 €
500 pcs.
1.4042 €
1000 pcs.
1.3566 €
*incl. VAT plus shipping costs
Subject to prior sale
Optocoupler, HCPL2530, BROADCOM
The HCPL2530 consist of an AlGaAs LED optically coupled to a high speed photodetector transistor. A separate connection for the bias of the photodiode improves the speed by several orders of magnitude over conventional phototransistor optocouplers by reducing the base-collector capacitance of the input transistor. An internal noise shield provides superior common mode rejection of 10kV/µs. An improved package allows superior insulation permitting a 480 V working voltage compared to industry standard of 220 V.
Applications
- Line receivers
- Pulse transformer replacement
- Output interface to CMOS-LSTTL-TTL
- Wide bandwidth analog coupling
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolation voltage | 3.75 kV | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Data transmission rate | 1000000 mb/s | |
| Fall time | 500 s | |
| Rise time | 450 s | |
| Number of channels | 2 | |
| Enclosure | DIP-8 |
