HCPL-0600-500E | Broadcom

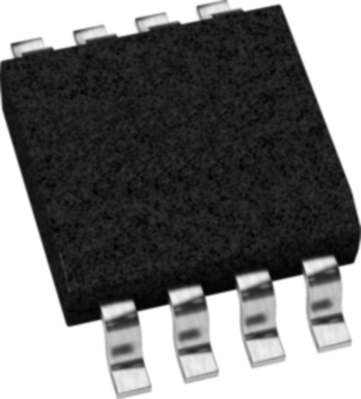

Broadcom optocoupler, SOIC-8, HCPL-0600-500E
No longer in assortment
Unit Price (€ / pc.)
0.595 € *
Available: 1,210 pcs.
Optocoupler, HCPL-0600-500E, BROADCOM
The HCPL-0600-500E combines a GaAsP light emitting diode and an integrated high gain photo detector. An enable input allows the detector to be strobed. The output of the detector IC is an open collector Schottky-clamped transistor. The internal shield provides a guaranteed common mode transient immunity specification. This unique design provides maximum AC and DC circuit isolation while achieving TTL compatibility. The optocoupler AC and DC operational parameters are guaranteed from - 40°C to +85°C allowing troublefree system performance.
Applications
- Isolated line receiver
- Computer-peripheral interfaces
- Microprocessor system interfaces
- Switching power supply
- Ground loop elimination
- Pulse transformer replacement
- Power transistor isolation in motor drives
- Isolation of high speed logic systems
Technical specifications
| Assembly | SMD | |
| Enclosure | SOIC-8 | |
| Data transmission rate | 10000000 mb/s | |
| Number of channels | 1 | |
| Isolation voltage | 3.75 kV | |
| Output current | 50 mA | |
| Rise time | 24 s | |
| Fall time | 11 s | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Original Packaging | Reel with 1,500 pieces |
| Customs tariff number | 85414900 |
| Country of origin | MY |
| MSL | MSL 1 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
