HCPL-0531-000E | Broadcom

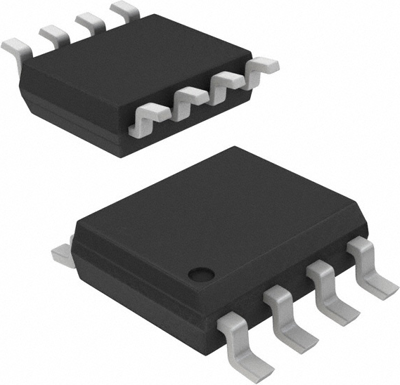

Broadcom optocoupler, SOIC-8, HCPL-0531-000E
Order No.: 66S440
MPN:
HCPL-0531-000E
Unit Price (€ / pc.)
2.1777 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
21.78 € *
Price list
Quantity
Price per unit*
10 pcs.
2.1777 €
50 pcs.
2.0944 €
100 pcs.
2.0111 €
*incl. VAT plus shipping costs
Subject to prior sale
Optocoupler, HCPL-0531-000E, Broadcom
This dual-channel optocoupler contains a pair of light-emitting diodes and integrated photo-detectors with electrical insulation between input and output. A separate connection for the photodiode bias and output transistor collector increases speed—up to a hundred times that of a conventional phototransistor coupler—by reducing the base-collector capacitance. This dual-channel optocoupler is available in both an 8-pin DIP and an industry-standard SO-8 package. The following is a cross-reference listing the 8-pin DIP part number and its electrically equivalent SO-8 counterpart.
Features
- 3 MHz bandwidth
- Open collector outputs
Applications
- Replace pulse transformers – save board space and weight
- Analog signal ground isolation – integrated photon detector provides improved linearity over phototran- sistor type
- Polarity sensing
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -55 °C | |
| max. operating temperature | 100 °C | |
| Assembly | SMD | |
| Output current | 8 mA | |
| Enclosure | SOIC-8 | |
| Number of channels | 2 | |
| Isolation voltage | 3.75 kV |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Customs tariff number | 85414900 |
| Original Packaging | Bar with 100 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
