HSMM-A101-R00J1 | Broadcom

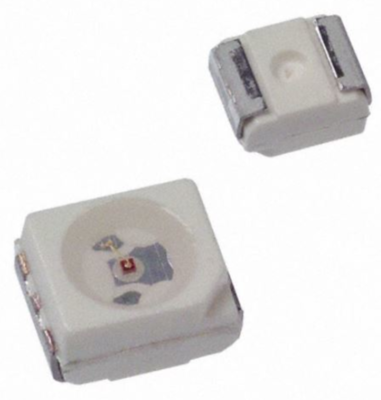

LED, SMD, PLCC-2, Ø 2.2 mm, green, 523 nm, 0.2 cd, 120°, HSMM-A101-R00J1
Discontinued
Unit Price (€ / pc.)
0.6188 € *
Available: 651 pcs.
Total Price:
3.09 € *
Price list
Quantity
Price per unit*
5 pcs.
0.6188 €
50 pcs.
0.5831 €
250 pcs.
0.5474 €
500 pcs.
0.5355 €
*incl. VAT plus shipping costs
Subject to prior sale
Surface-mount LED indicator, HSMM-A101-R00J1, BROADCOM
The HSMM-A101-R00J1 has high-reliability performance and is designed to work under a wide range of environmental conditions. This high-reliability feature makes it ideally suited to be used under harsh interior automotive conditions, as well as interior sign application conditions.
Features
- Industry-standard PLCC-2 package
- High-reliability LED package
- High brightness using AlInGaP and InGaN dice technologies
- Super wide viewing angle at 120°
- Compatible with IR soldering process
Applications
- Interior automotive
- Electronic signs and signals
- Office automation, home appliances, industrial equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 2.2 mm | |
| Colour of the LED | green | |
| Width | 2.8 mm | |
| Number of LEDs | 1 | |
| Light intensity typ. | 0.2 cd | |
| Enclosure | PLCC-2 | |
| Assembly | SMD | |
| Wavelength | 523 nm | |
| Forward Current | 20 mA | |
| Lens | clear | |
| On-State Voltage | 3.4 V | |
| Radiation angle | 120 ° | |
| min. operating temperature | -55 °C | |
| Length | 3.2 mm | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 2A |
| Original Packaging | Reel with 2,000 pieces |
| Country of origin | CN |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
