HLMP1719 | Broadcom

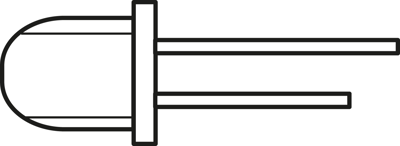

LED, THT, Ø 3 mm, yellow, 585 nm, 0.002 cd, 50°, HLMP1719
No longer in assortment
Unit Price (€ / pc.)
0.1666 € *
Available: 20 pcs.
Low current LED Lamp, HLMP1719, BROADCOM
The HLMP1719 is a tinted diffused LED lamp designed and optimized specifically for low DC current operation. Luminous intensity and forward voltage are tested at 2 mA to assure consistent brightness at TTL output current levels.
Features
- Low power
- High efficiency
- CMOS-MOS compatible
- Wide viewing angle
- AlInGaP LED technology
Applications
- Low power DC circuits
- Telecommunications indicators
- Portable equipment
- Keyboard indicators
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| On-State Voltage | 2.7 V | |
| Number of LEDs | 1 | |
| Lens | yellow | |
| Colour of the LED | yellow | |
| Radiation angle | 50 ° | |
| diameter | 3 mm | |
| Forward Current | 2 mA | |
| Wavelength | 585 nm | |
| Light intensity typ. | 0.002 cd |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
