SW-725 | BRAINBOXES

Ethernet switch, 5 ports, 100 Mbit/s, 44-57 VDC, SW-725

Order No.: 06P8055
MPN:
SW-725

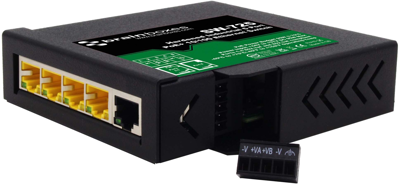

SW-725 BRAINBOXES Industrial ethernet switches Image 1

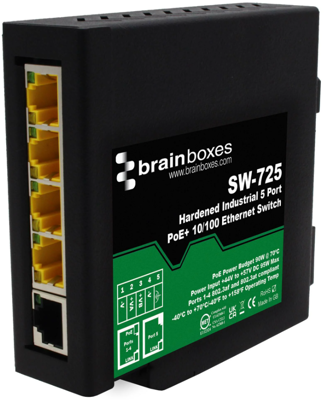

SW-725 BRAINBOXES Industrial ethernet switches Image 2

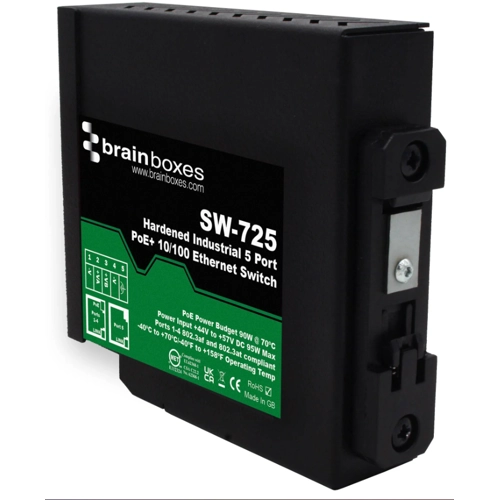

SW-725 BRAINBOXES Industrial ethernet switches Image 3
Image may differ
Unit Price (€ / pc.)
224.6720 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
224.67 € *
Price list
Quantity
Price per unit*
1 pcs.
224.6720 €
3 pcs.
204.5729 €
*incl. VAT plus shipping costs
Subject to prior sale

PoE ethernet switch, SW-725, BRAINBOXES

Hardened Industrial 5 Port PoE+ Fast Ethernet device. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40 °C to +70 °C (-40 °F to 176 °F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24 V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Send power and data to remote CCTV cameras, PoE telephones, PoE Wifi access points, NVRs, and more.

Features

  • Allows power and data to be combined on the same Ethernet cable
  • Ports 1-4 PoE+ capable
  • Ports 1-4 IEEE 802.3af/at compliant: deliver up to 30W to each port (backwards compatible)
  • PoE Power Budget: 90W @ 70ºC between all 4 PoE ports simultaneously
  • Compact design with integral DIN mount
Technical specifications
Filter Property Value
Ports 5
Data transmission rate 100000000 mb/s
Version ethernet switch
Assembly DIN rail
Voltage 44-57 VDC
Logistics
Property Value
Customs tariff number 85176200
Country of origin GB
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
