SW-718 | BRAINBOXES

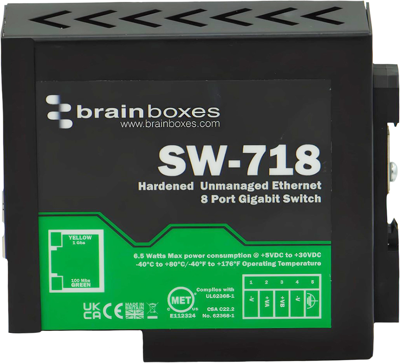

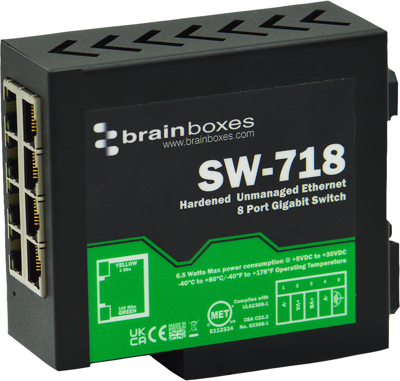

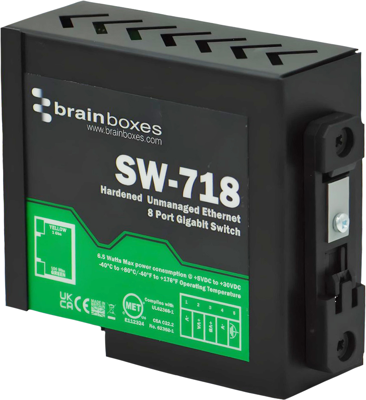

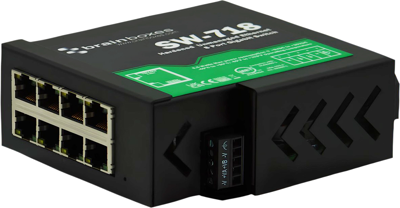

Ethernet switch, unmanaged, 8 ports, 1000 Mbit/s, 5-30 VDC, SW-718
Compact industrial 8 Port Gigabit Ethernet unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 29mm wide and 95mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.

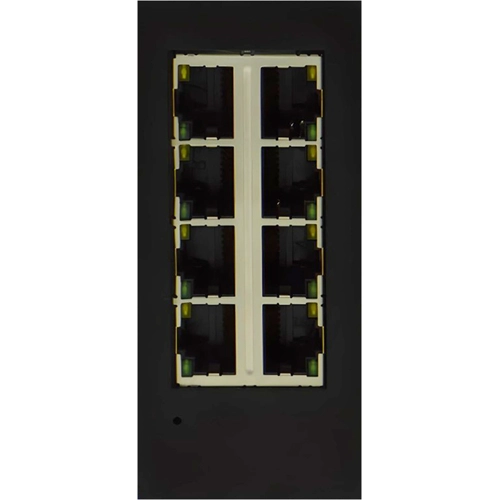

Ethernet Ports: 8
Ethernet Speed: 10/100/1000 Gigabit Ethernet
PoE: No
Power Input: 5V - 30V DC input, reverse polarity protected
Operating Temperature Range: -40 °C to +80 °C / -40 °F to +176 °F
Storage Temperature: -40 °C to +85 °C / -40 °F to +185 °F
Form Factor: Din rail mounted
Power Consumption: 6.5W Max: 216mA at +30VDC
Product Weight: 0.38 kg, 13.4 ounces
Product Dimensions: 114.9 x 99.3 x 41.3 mm, 4.52 x 3.91 x 1.63 inches
Packaged Weight: 0.46 kg, 16.23 ounces
Packaged Dimensions: 160 x 135 x 49 mm, 6.3 x 5.31 x 1.93 inches
By providing a number of Ethernet interfaces, you can take advantage of pre-existing infrastructure, allowing for easy expansion of an existing Ethernet based network.
Version | ethernet switch, unmanaged | |
Ports | 8 | |
Voltage | 5-30 VDC | |
Data transmission rate | 1000000000 mb/s | |
Assembly | DIN rail |
Country of origin | GB |
Customs tariff number | 85176200 |
RoHS conform | Yes |
SVHC free | Yes |
Date of RoHS guidelines | 3/31/15 |
