ED-588 | BRAINBOXES
I/O module, 1 port, BRAINBOXES ED-588
Order No.: 06P8021
EAN: 4099891549688
MPN:
ED-588
Unit Price (€ / pc.)
287.1589 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
287.16 € *
Price list
Quantity
Price per unit*
1 pcs.
287.1589 €
3 pcs.
278.5433 €
10 pcs.
268.9757 €
25 pcs.
261.8000 €
*incl. VAT plus shipping costs
Subject to prior sale

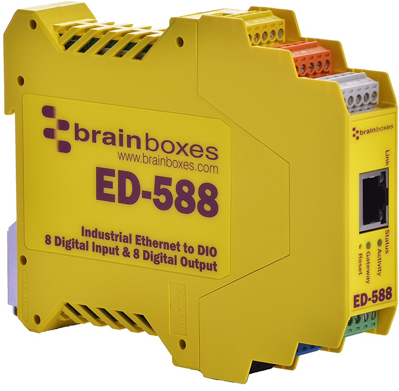

Communication module, ED-588, BRAINBOXES
The Brainboxes Ethernet to digital I/O media converter has 8 non-isolated digital input channels and 8 digital output channels. It offers a robust and intelligent ’control side’ devices that provide the interface to systems on the 24VDC factory floor environment, commonly referred to as ’process side’.
Features
- Control any input or output from TTL to high voltage
- High current industrial devices
- Integrated DIN rail mount
- RS485 gateway port
Technical Data
- Version: Ethernet 1 Port
- Number of inputs: 8
- Number of outputs: 8
- Protection rating: IP30
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | I/O module | |
| Version | 1 port | |
| Data transmission rate | 100000000 mb/s | |
| Number of outputs | 8 | |
| Assembly | DIN rail | |
| Width | 102 mm | |
| Height | 129 mm | |
| Depth | 23 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85176200 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
