ED-549 | BRAINBOXES

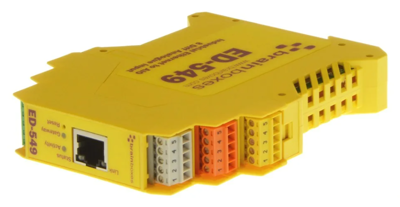

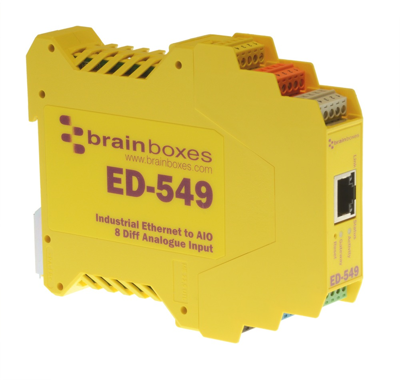

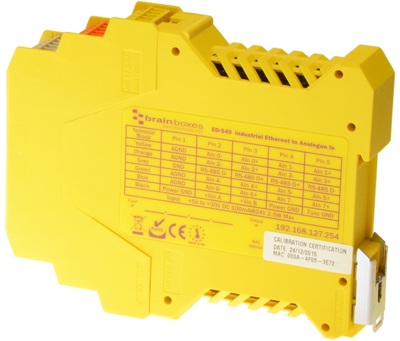

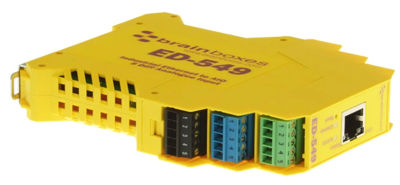

I/O module, 1 port, BRAINBOXES ED-549
Order No.: 06P8020
EAN: 4099891549671
MPN:
ED-549
Unit Price (€ / pc.)
437.1346 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
437.13 € *
Price list
Quantity
Price per unit*
1 pcs.
437.1346 €
3 pcs.
424.0208 €
10 pcs.
409.4433 €
25 pcs.
398.5191 €
*incl. VAT plus shipping costs
Subject to prior sale
Communication module, ED-549, BRAINBOXES
The Brainboxes Ethernet switch has 8 analogue inputs. It is suitable for high precision measurements of voltage and current. Most of the parameters in the real world are measured using sensors with analogue output sensors and this Brainboxes Ethernet switch takes these real-world signals and turns them into data on your network.
Features
- Individually configurable
- Monitor instantly from any web browser
- Programmable gain amp allows full resolution measurements down to 75 mV
- Integrated DIN rail mount
Technical Data
- Version: Ethernet Switch
- Measurement rate: 8 measurements per second
- Number of analogue inputs: 8
- Protection rating: IP20
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 23 mm | |
| Number of outputs | 4 | |
| Data transmission rate | 100000000 mb/s | |
| Product type | I/O module | |
| Width | 102 mm | |
| Assembly | DIN rail | |
| Height | 129 mm | |
| Version | 1 port |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 85176200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
