ED-538 | BRAINBOXES
I/O module, 1 port, BRAINBOXES ED-538
Order No.: 06P8019
EAN: 4099891549664
MPN:
ED-538
Unit Price (€ / pc.)
316.3258 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
316.33 € *
Price list
Quantity
Price per unit*
1 pcs.
316.3258 €
2 pcs.
303.6761 €
*incl. VAT plus shipping costs
Subject to prior sale

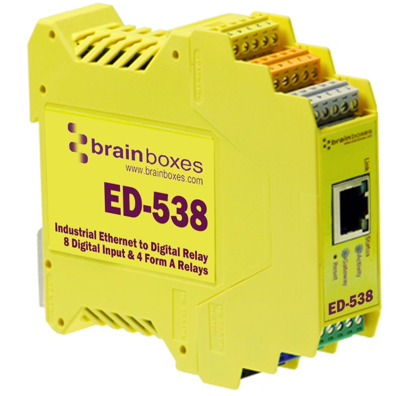

Communication module, ED-538, BRAINBOXES
The Brainboxes Ethernet to digital I/O relay converter is a state-of-the-art device with 8 non-isolated digital input channels and 4 digital relay output channels. It offers robust and intelligent control side devices that provide the interface to systems on the 24VDC factory floor environment, commonly referred to as process side.
Features
- Easy wire feature with removable screw terminal blocks
- Factory floor process control and automation
- Easy to use interace
- Software APIs for visual basic, C# and more
Technical Data
- Input voltage: 5-30 VDC
- Output voltage: 60 V
- Number of inputs: 8
- Number of outputs: 4
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 22.6 mm | |
| Height | 128 mm | |
| Assembly | DIN rail | |
| Data transmission rate | 100000000 mb/s | |
| Width | 102 mm | |
| Number of outputs | 4 | |
| Product type | I/O module | |
| Version | 1 port |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85176200 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
