ED-516 | BRAINBOXES
I/O module, 1 port, BRAINBOXES ED-516
Order No.: 06P8052
EAN: 4099891549862
MPN:
ED-516
Unit Price (€ / pc.)
266.7385 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
266.74 € *
Price list
Quantity
Price per unit*
1 pcs.
266.7385 €
3 pcs.
242.8790 €
*incl. VAT plus shipping costs
Subject to prior sale

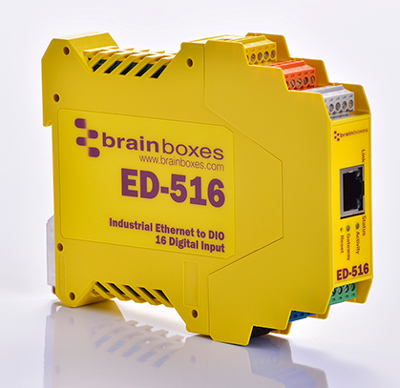

Ethernet device, ED-516, Brainboxes
Ethernet to 16 Digital Inputs + ASCII Gateway. The device can be controlled over TCP/IP using the Modbus TCP protocol or simple ASCII commands. Additionally Brainboxes supply a suite of APIs and sample code to communicate with the device using Microsoft.
Features
- Monitor any input from TTL to high voltage high current industrial devices
- Factory floor process control and automation, Integrated DIN rail mount
- Supports simple ASCII or industry standard Modbus TCP
- Software APIs for Visual Basic, C# and more
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 22.6 mm | |
| Height | 128 mm | |
| Assembly | DIN rail | |
| Data transmission rate | 100000000 mb/s | |
| Width | 102 mm | |
| Product type | I/O module | |
| Version | 1 port |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85176200 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
