US-701 | BRAINBOXES
Device server, (W x H x D) 123 x 34 x 215 mm, US-701
Order No.: 06P1027
EAN: 837324002027
MPN:
US-701
Unit Price (€ / pc.)
228.8013 € *
Standard delivery time from the manufacturer is: On Request

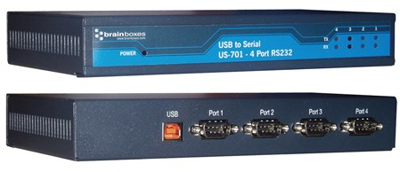

Device server, US-701, BRAINBOXES
USB to Serial Server providing four RS232 serial ports. Data transfer rates up to 921,600 baud rates and the 128 byte transmit and 256 byte receive FIFOS, coupled with 1Mbit line drivers deliver uncompromising performance on your laptop/PC.
Features
- High retention USB socket, IP30 rated case
- Drivers for all popular operating systems including Windows 8
- Powered by USB connection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 215 mm | |
| Height | 34 mm | |
| Width | 123 mm | |
| Version | USB to serial server |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85176200 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
