ES-246 | BRAINBOXES
Device server ethernet to serial, 100 Mbit/s, RS232, (W x H x D) 106 x 105 x 28 mm, ES-246
Order No.: 06P8022
EAN: 4099891549695
MPN:
ES-246
Unit Price (€ / pc.)
157.6393 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
157.64 € *
Price list
Quantity
Price per unit*
1 pcs.
157.6393 €
2 pcs.
146.5961 €
5 pcs.
136.3264 €
*incl. VAT plus shipping costs
Subject to prior sale
Communication module, ES-246, BRAINBOXES

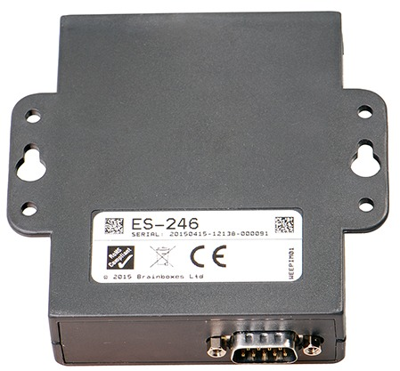

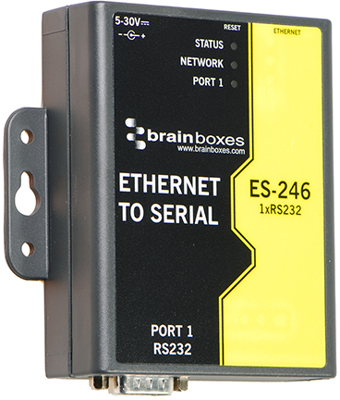

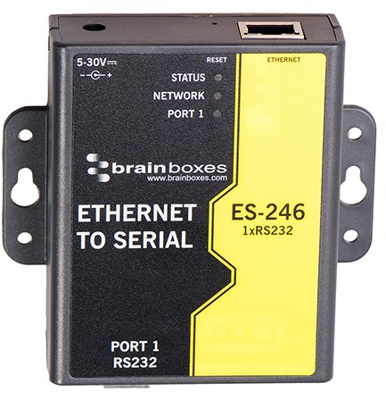

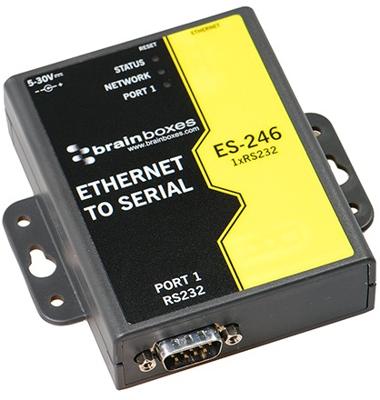

The Brainboxes Ethernet to serial device server provides access to one RS232 serial port. It has data transfer rates up to 1,000,000 baud and when coupled with 1Mbit/s line drivers, it delivers uncompromising performance. The ES range in this device also provides simple instant networked serial ports.
Features
- User-friendly interface
- Simple operation for each and every operating system
- Web configuration
- Power supply included
Technical Data
- Version: Ethernet 1 Port RS232
- Baud rate: 110-1,000,000 B
- Number of ports: 1
- Protection rating: IP30
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 105 mm | |
| Data transmission rate | 100000000 mb/s | |
| Version | ethernet-to-serial device server | |
| Depth | 28 mm | |
| Width | 106 mm | |
| Interfaces | RS232 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85176200 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
