PE-205 | BRAINBOXES
Power supply module, 3.3 VDC, 1.2 A, 5 W, PE-205
Order No.: 06P8416
EAN: 837324005400
MPN:
PE-205
Unit Price (€ / pc.)
46.5766 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
46.58 € *
Price list
Quantity
Price per unit*
1 pcs.
46.5766 €
2 pcs.
44.7083 €
3 pcs.
42.9947 €
*incl. VAT plus shipping costs
Subject to prior sale
Power supply module, PE-205, BRAINBOXES
Pure compatibility, pure stability, pure design. The perfect fit for any stable, future-proof system, even where space is limited.

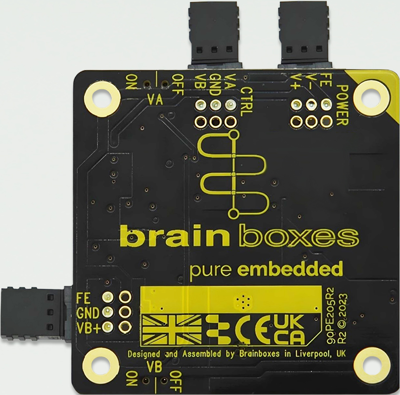

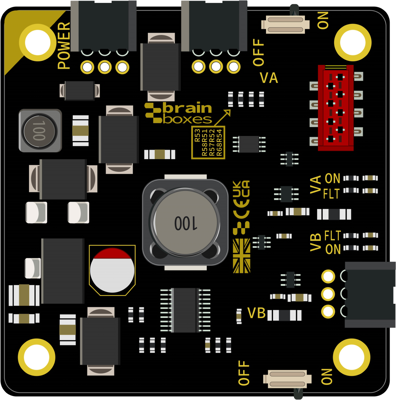

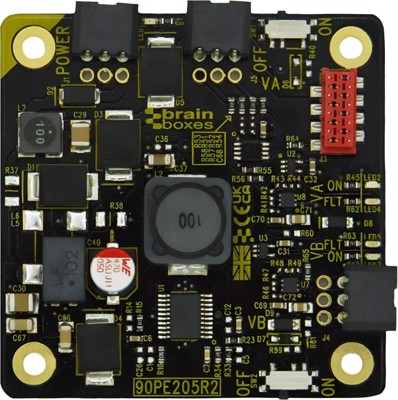

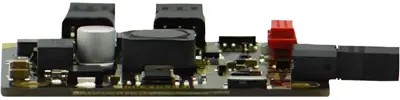

PE-205 Pure Embedded Power Supply Module is a compact, industrial DC-DC power supply module offering a wide 5 to 30 VDC input range, with two 3.3 V outputs, designed to allow seamless integration with Pure Embedded (PE) range of compact industrial switches, or any other low voltage device where space is a premium.
Features
- Supports modular stacking with Pure Embedded (PE-5XX) range
- Compact form – smaller than a standard business card (board size just 55 x 55 mm)
- Seamless integration with design software – logical placements and fixed distances
- Power output control – Switch power outputs on/off remotely
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Width | 67.3 mm | |
| Output voltage DC | 3.3 VDC | |
| Input voltage AC | 5-30 VDC | |
| Height | 9.4 mm | |
| Output current | 1.2 A | |
| Power | 5 W | |
| Length | 66.7 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044085 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
