5U230801 | BOX4U

PC enclosure, (L x W x H) 160 x 120 x 75 mm, light gray (RAL 7035), IP66, 5U230801

Order No.: 60H1342
EAN: 2050000001277
MPN:
5U230801
BOX4U, PC 230801 5U
Series: BOX4U

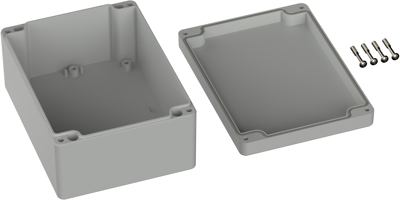

5U230801 BOX4U General Purpose Enclosures Image 1

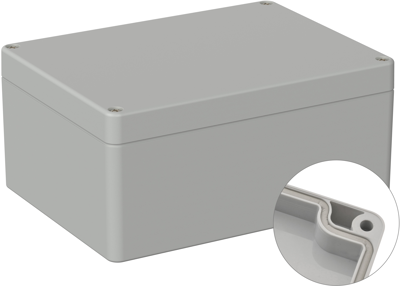

5U230801 BOX4U General Purpose Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
15.5414 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
15.54 € *
Price list
Quantity
Price per unit*
1 pcs.
15.5414 €
5 pcs.
14.7679 €
10 pcs.
14.0420 €
100 pcs.
12.6497 €
*incl. VAT plus shipping costs
Subject to prior sale

Industrial enclosure, 5U230801, BOX4U

Industrial enclosure made of polycarbonate (UV stabilised), cover screws screwed into high-quality threaded bushes, no thread wear even after repeated opening.

The enclosure can be mounted on the wall using the screw channels.

Large machining areas and versatile mounting options for connectors, switches and buttons. PCBs can be securely fastened via screw domes in the bottom section. Enclosures are suitable for outdoor use.

Features

  • Protection class: IP66 / DIN EN 60529
  • Colour: light grey similar to RAL 7035
  • Factory fitted seal
  • IK classification: IK07
  • Temperature resistance: -25°C / +110°C
Technical specifications
Degree of protection (IP) IP66
Length 160 mm
Colour light gray
Width 120 mm
Height 75 mm
Material PC
RAL number 7035
Logistics
Customs tariff number 39269097
Country of origin RO
Compliance
Substance description Lead
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
