03231000.H | BOX4U

ABS enclosure, (L x W x H) 160 x 80 x 85 mm, gray, IP66, 03231000.H

Order No.: 60H1240
EAN: 2099999990117
MPN:
03231000.H
BOX4U, KST 231
Series: BOX4U

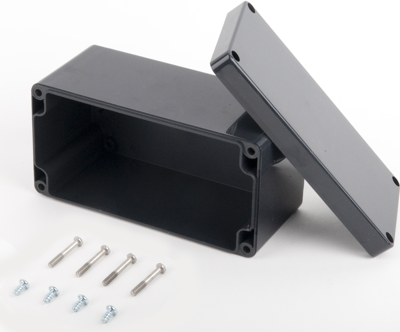

03231000.H BOX4U General Purpose Enclosures Image 1

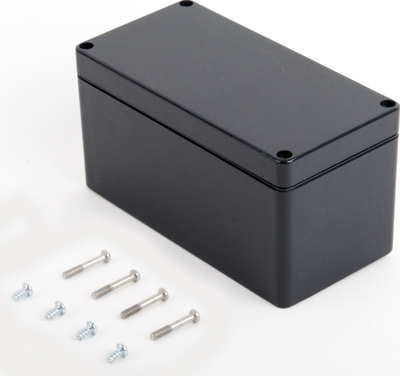

03231000.H BOX4U General Purpose Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
10.5077 € *
Available: 20 pcs.
Total Price:
10.51 € *
Price list
Quantity
Price per unit*
1 pcs.
10.5077 €
5 pcs.
9.9960 €
10 pcs.
9.5081 €
100 pcs.
8.5561 €
*incl. VAT plus shipping costs
Subject to prior sale

ABS Industrial enclosure, 03231000.H, BOX4U

Industrial enclosure made of ABS, cover screws screwed into high-quality threaded bushes, no thread wear even after repeated opening.

The enclosure can be mounted on the wall using the screw channels.

Large processing areas and versatile mounting options for connectors, switches and buttons. PCBs can be securely fastened via screw domes in the lower section.

Features

  • Protection class: IP66 / DIN EN 60529
  • Colour: slate grey similar to RAL 7015
  • Factory fitted round cord seal
  • Temperature resistance: -25°C / +70°C
Technical specifications
Height 85 mm
Length 160 mm
Colour gray
Material ABS
Width 80 mm
Degree of protection (IP) IP66
Logistics
Customs tariff number 39269097
Country of origin RO
Compliance
SVHC free No
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
