WS1A33R0J | Bourns Electronics GmbH

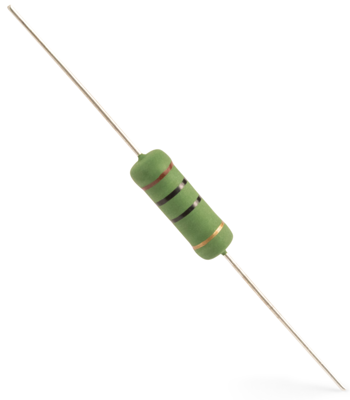

Wirewound resistor, 33 Ω, 1 W, ±5 %, WS1A33R0J
Order No.: 07E8726
EAN: 4099879668097
MPN:
WS1A33R0J
Unit Price (€ / pc.)
0.1511 € *
Available: 0 pcs.
Leadtime: 19 Weeks **
Wirewound resistor, WS1A33R0J, Bourns Electronics GmbH
The WS1A33R0J is a high surge withstand wirewound resistor with low thermal resistant ceramic core.
Applications
- Smart meters
- Renewable energy
- Industrial
- Power supplies/chargers
- Lighting
- Instruments/gauges
Technical specifications
| Temperature coefficient | ±200 ppm/K | |
| Assembly | THT | |
| diameter | 5 mm | |
| Power | 1 W | |
| Length | 11.5 mm | |
| Version | wirewound resistor | |
| Design | axial | |
| min. operating temperature | -55 °C | |
| Tolerance | ±5 % | |
| max. operating temperature | 200 °C | |
| ohmic resistance | 33 Ω |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85332100 |
| Original Packaging | Ammopack with 1,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
