PWR221T-30-2R20F | Bourns Electronics GmbH
Thick film resistor, 2.2 Ω, 30 W, ±1 %, PWR221T-30-2R20F
Order No.: 07E7084
EAN: 4099879667380
MPN:
PWR221T-30-2R20F
Unit Price (€ / pc.)
4.2126 € *
Standard delivery time from the manufacturer is: 12 Weeks
Power resistor, PWR221T-30-2R20F, Bourns Electronics GmbH

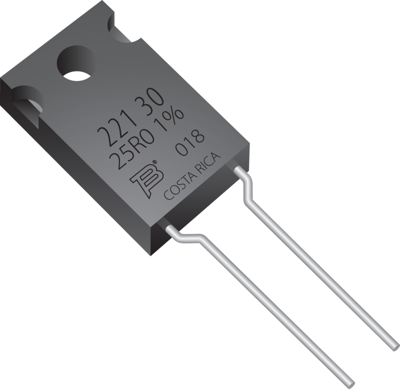

The PWR221T-30-2R20F is a TO-220 style power resistor made using thick film on alumina ceramic technology. It is used in current limiting, capacitor discharge or current measurement circuits in power supplies for telecom and industrial applications.
Features
- Low inductance
- Ceramic backplane
- High power rating
- RoHS compliant
Applications
- Power supplies
- Motor drives
- Test and measurement
- Rectifiers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 3.18 mm | |
| Power | 30 W | |
| Length | 10.41 mm | |
| Design | radial | |
| max. operating temperature | 150 °C | |
| Assembly | THT | |
| Isolation voltage | 2 kV | |
| min. operating temperature | -55 °C | |
| Temperature coefficient | ±100 ppm/K | |
| Version | thick film resistor | |
| Height | 16.26 mm | |
| Tolerance | ±1 % | |
| ohmic resistance | 2.2 Ω |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332900 |
| MSL | MSL 1 |
| Original Packaging | Bar with 50 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
