PWR221T-30-1501J | Bourns Electronics GmbH
Thick film resistor, 1.5 kΩ, 30 W, ±1 %, PWR221T-30-1501J
Order No.: 07E7067
EAN: 4099879667212
MPN:
PWR221T-30-1501J
Unit Price (€ / pc.)
3.4153 € *
Standard delivery time from the manufacturer is: 12 Weeks

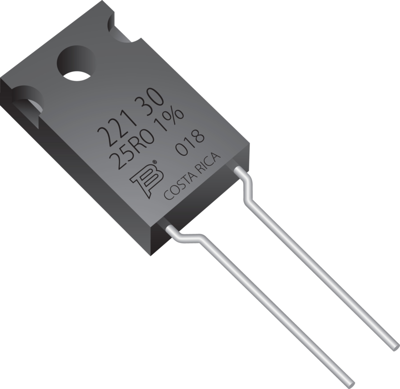

Power resistor, PWR221T-30-1501J, Bourns Electronics GmbH
The PWR221T-30-1501J is a TO-220 style power resistor made using thick film on alumina ceramic technology. It is used in current limiting, capacitor discharge or current measurement circuits in power supplies for telecom and industrial applications.
Features
- Low inductance
- Ceramic backplane
- High power rating
- RoHS compliant
Applications
- Power supplies
- Motor drives
- Test and measurement
- Rectifiers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | thick film resistor | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C | |
| Isolation voltage | 2 kV | |
| Height | 16.26 mm | |
| Tolerance | ±1 % | |
| Width | 3.18 mm | |
| ohmic resistance | 1.5 kΩ | |
| Power | 30 W | |
| Length | 10.41 mm | |
| Temperature coefficient | ±100 ppm/K | |
| Design | radial | |
| Assembly | THT |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 50 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85332900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
