PWR221T-30-1002F | Bourns Electronics GmbH
Thick film resistor, 10 kΩ, 30 W, ±1 %, PWR221T-30-1002F
Order No.: 07E7059
EAN: 4099879667137
MPN:
PWR221T-30-1002F
Unit Price (€ / pc.)
3.7366 € *
Standard delivery time from the manufacturer is: 12 Weeks
Power resistor, PWR221T-30-1002F, Bourns Electronics GmbH

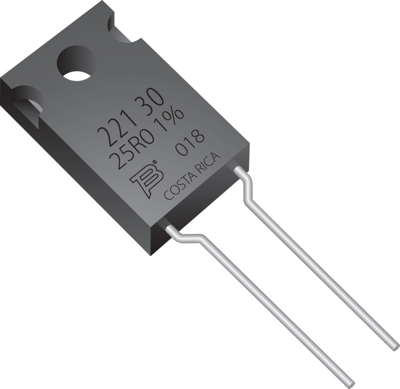

The PWR221T-30-1002F is a TO-220 style power resistor made using thick film on alumina ceramic technology. It is used in current limiting, capacitor discharge or current measurement circuits in power supplies for telecom and industrial applications.
Features
- Low inductance
- Ceramic backplane
- High power rating
- RoHS compliant
Applications
- Power supplies
- Motor drives
- Test and measurement
- Rectifiers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 10 kΩ | |
| Temperature coefficient | ±100 ppm/K | |
| max. operating temperature | 150 °C | |
| Isolation voltage | 2 kV | |
| Length | 10.41 mm | |
| Design | radial | |
| Power | 30 W | |
| min. operating temperature | -55 °C | |
| Tolerance | ±1 % | |
| Width | 3.18 mm | |
| Assembly | THT | |
| Height | 16.26 mm | |
| Version | thick film resistor |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 50 pieces |
| Customs tariff number | 85332900 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
