FW70A1000JA | Bourns Electronics GmbH

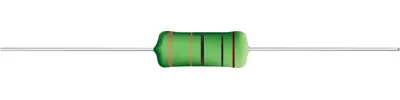

Wirewound resistor, 100 Ω, 7 W, ±5 %, FW70A1000JA
Order No.: 07E4838
EAN: 4099879665393
MPN:
FW70A1000JA
Unit Price (€ / pc.)
0.6069 € *
Standard delivery time from the manufacturer is: 19 Weeks
Wirewound resistor, FW70A1000JA, Bourns Electronics GmbH
The FW70A1000JA is a axial leaded wirewound resistor designed to fuse under abnormal conditions such as sudden surges in voltage or circuit malfunctions. The resistor will fuse upon application of 120 or 240 voltages.
Features
- E24 resistance values
- RoHS compliant
Applications
- White goods
- Inverters
- Lighting
- Metering
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 9.5 mm | |
| ohmic resistance | 100 Ω | |
| Temperature coefficient | ±200 ppm/K | |
| max. operating temperature | 155 °C | |
| Length | 26 mm | |
| Design | axial | |
| Power | 7 W | |
| min. operating temperature | -55 °C | |
| Tolerance | ±5 % | |
| Assembly | THT | |
| Version | power resistor |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Ammopack with 500 pieces |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
