FW30A22R0JA | Bourns Electronics GmbH
Wirewound resistor, 22 Ω, 3 W, ±5 %, FW30A22R0JA
Order No.: 07E4817
EAN: 4099879665188
MPN:
FW30A22R0JA
Unit Price (€ / pc.)
0.3689 € *
Available: 0 pcs.
Leadtime: 19 Weeks **

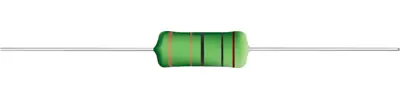

Wirewound resistor, FW30A22R0JA, Bourns Electronics GmbH
The FW30A22R0JA is a axial leaded wirewound resistor designed to fuse under abnormal conditions such as sudden surges in voltage or circuit malfunctions. The resistor will fuse upon application of 120 or 240 voltages.
Features
- E24 resistance values
- RoHS compliant
Applications
- White goods
- Inverters
- Lighting
- Metering
Technical specifications
| Temperature coefficient | ±200 ppm/K | |
| Assembly | THT | |
| diameter | 6.5 mm | |
| Power | 3 W | |
| Length | 16 mm | |
| Version | power resistor | |
| Design | axial | |
| min. operating temperature | -55 °C | |
| Tolerance | ±5 % | |
| max. operating temperature | 155 °C | |
| ohmic resistance | 22 Ω |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85332100 |
| Original Packaging | Ammopack with 1,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
