FW20A7R50JA | Bourns Electronics GmbH

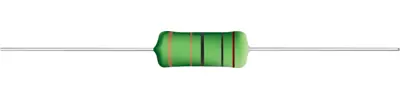

Wirewound resistor, 7.5 Ω, 2 W, ±5 %, FW20A7R50JA
Order No.: 07E4810
EAN: 4099879665119
MPN:
FW20A7R50JA
Unit Price (€ / pc.)
0.2761 € *
Standard delivery time from the manufacturer is: 19 Weeks
Wirewound resistor, FW20A7R50JA, Bourns Electronics GmbH
The FW20A7R50JA is a axial leaded wirewound resistor designed to fuse under abnormal conditions such as sudden surges in voltage or circuit malfunctions. The resistor will fuse upon application of 120 or 240 voltages.
Features
- E24 resistance values
- RoHS compliant
Applications
- White goods
- Inverters
- Lighting
- Metering
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power | 2 W | |
| Length | 12 mm | |
| Design | axial | |
| max. operating temperature | 155 °C | |
| Assembly | THT | |
| min. operating temperature | -55 °C | |
| diameter | 6 mm | |
| Temperature coefficient | ±200 ppm/K | |
| Version | power resistor | |
| Tolerance | ±5 % | |
| ohmic resistance | 7.5 Ω |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85332100 |
| Original Packaging | Ammopack with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
