FW20A6R80JA | Bourns Electronics GmbH

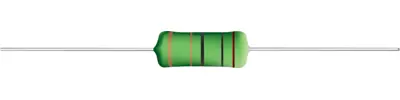

Wirewound resistor, 6.8 Ω, 2 W, ±5 %, FW20A6R80JA
Order No.: 07E4809
EAN: 4099879665102
MPN:
FW20A6R80JA
Unit Price (€ / pc.)
0.2761 € *
Standard delivery time from the manufacturer is: 19 Weeks
Wirewound resistor, FW20A6R80JA, Bourns Electronics GmbH
The FW20A6R80JA is a axial leaded wirewound resistor designed to fuse under abnormal conditions such as sudden surges in voltage or circuit malfunctions. The resistor will fuse upon application of 120 or 240 voltages.
Features
- E24 resistance values
- RoHS compliant
Applications
- White goods
- Inverters
- Lighting
- Metering
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -55 °C | |
| max. operating temperature | 155 °C | |
| Version | power resistor | |
| Assembly | THT | |
| Power | 2 W | |
| diameter | 6 mm | |
| Tolerance | ±5 % | |
| Temperature coefficient | ±200 ppm/K | |
| Design | axial | |
| Length | 12 mm | |
| ohmic resistance | 6.8 Ω |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Country of origin | CN |
| Original Packaging | Ammopack with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
