FW20A10R0JA | Bourns Electronics GmbH
Wirewound resistor, 10 Ω, 2 W, ±5 %, FW20A10R0JA
Order No.: 07E4797
EAN: 4099879664983
MPN:
FW20A10R0JA
As a private customer, you can buy this item as soon as we have it back in stock.

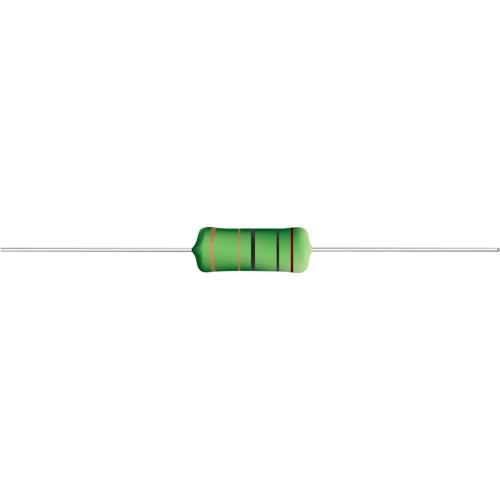

Wirewound resistor, FW20A10R0JA, Bourns Electronics GmbH
The FW20A10R0JA is a axial leaded wirewound resistor designed to fuse under abnormal conditions such as sudden surges in voltage or circuit malfunctions. The resistor will fuse upon application of 120 or 240 voltages.
Features
- E24 resistance values
- RoHS compliant
Applications
- White goods
- Inverters
- Lighting
- Metering
Technical specifications
| Temperature coefficient | ±200 ppm/K | |
| Assembly | THT | |
| diameter | 6 mm | |
| Power | 2 W | |
| Length | 12 mm | |
| Version | power resistor | |
| Design | axial | |
| min. operating temperature | -55 °C | |
| Tolerance | ±5 % | |
| max. operating temperature | 155 °C | |
| ohmic resistance | 10 Ω |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85332100 |
| MSL | MSL 1 |
| Original Packaging | Ammopack with 1,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
