GMOV-20D111K | Bourns Electronics GmbH

Hybrid protection component, radial, VV 180 V, 10000 A, 150 V (DC), 115 V (AC), ±10 %, 130 J, GMOV-20D111K

Order No.: 82E6971
EAN: 4099879995445
MPN:
GMOV-20D111K
GMOV-20D111K Bourns Electronics GmbH Varistors

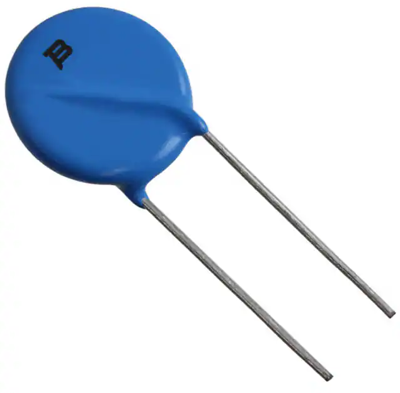

Image may differ
Unit Price (€ / pc.)
1.4161 € *
Standard delivery time from the manufacturer is: 29 Weeks
Total Price:
354.03 € *
*incl. VAT plus shipping costs
Subject to prior sale
250 pcs.
1.4161 €

Hybrid protection component, GMOV-20D111K, Bourns Electronics GmbH

The GMOV-20D111K hybrid protection component has a high performance as a long life protector with low capacitance and, most importantly, very low leakage. This product is ideally suited for any number of AC and DC power applications where a high level of performance is required over time.

Features

  • Bidirectional protection
  • Low capacitance
  • UL Type 5 Recognized
  • RoHS compliant

Applications

  • White goods
  • Power line communications
  • High value consumer goods
  • Solar inverters
  • Power supplies
  • Distribution systems
Technical specifications
Rated voltage (DC) 150 V
Varistor Voltage Type 180 V
Energy absorption 130 J
Rated voltage (AC) 115 V
Design radial
min. operating temperature -25 °C
Tolerance ±10 %
max. operating temperature 85 °C
max. Surge current, transient (8/20 µs) 10000 A
Logistics
Country of origin CN
Customs tariff number 85363010
MSL MSL 1
Original Packaging Bulk with 250 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
