GMOV-14D271K | Bourns Electronics GmbH

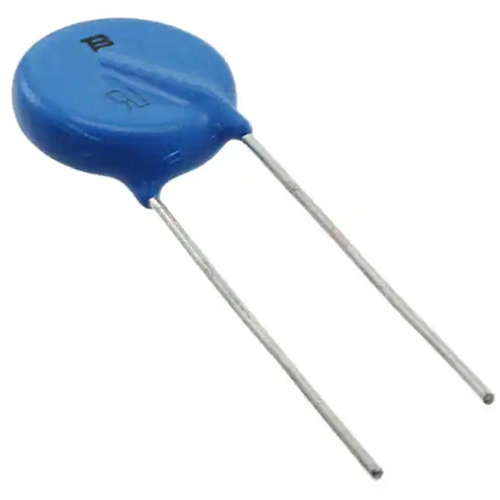

Hybrid protection component, radial, VV 430 V, 6000 A, 350 V (DC), 275 V (AC), ±10 %, 155 J, GMOV-14D271K

Order No.: 82E6964
EAN: 4099879995377
MPN:
GMOV-14D271K
Series: GMOV
GMOV-14D271K Bourns Electronics GmbH Varistors
Image may differ
Unit Price (€ / pc.)
1.0353 € *
Standard delivery time from the manufacturer is: 29 Weeks
Total Price:
414.12 € *
*incl. VAT plus shipping costs
Subject to prior sale
400 pcs.
1.0353 €

Hybrid protection component, GMOV-14D271K, Bourns Electronics GmbH

The GMOV-14D271K hybrid protection component has a high performance as a long life protector with low capacitance and, most importantly, very low leakage. This product is ideally suited for any number of AC and DC power applications where a high level of performance is required over time.

Features

  • Bidirectional protection
  • Low capacitance
  • UL Type 5 Recognized
  • RoHS compliant

Applications

  • White goods
  • Power line communications
  • High value consumer goods
  • Solar inverters
  • Power supplies
  • Distribution systems
Technical specifications
Rated voltage (DC) 350 V
Varistor Voltage Type 430 V
Energy absorption 155 J
Rated voltage (AC) 275 V
Design radial
min. operating temperature -25 °C
Tolerance ±10 %
max. operating temperature 85 °C
max. Surge current, transient (8/20 µs) 6000 A
Logistics
Country of origin CN
Customs tariff number 85363010
MSL MSL 1
Original Packaging Bulk with 400 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
