CG0603MLE-18E | Bourns Electronics GmbH

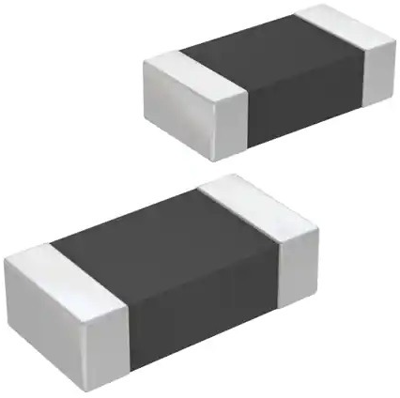

Varistor, SMD 0603, 18 V (DC), 8.5 V (AC), CG0603MLE-18E
Order No.: 06E8305
EAN: 4099879984203
MPN:
CG0603MLE-18E
Unit Price (€ / pc.)
0.0678 € *
Standard delivery time from the manufacturer is: 18 Weeks
ESD Clamp protector, CG0603MLE-18E, Bourns Electronics GmbH
The CG0603MLE-18E has been designed to provide high frequency attenuation, thereby providing suppression and filtering in a single device.It also offers protection to ESD standards such as IEC61000-4-2 for applications requiring up to 18 V DC.
Features
- Withstands multiple ESD strikes
- Low capacitance and leakage currents for invisible load protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 18 V | |
| Rated voltage (AC) | 8.5 V | |
| Design | SMD 0603 | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85334090 |
| Original Packaging | Reel with 4,000 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
