CG0402MLE-18G | Bourns Electronics GmbH

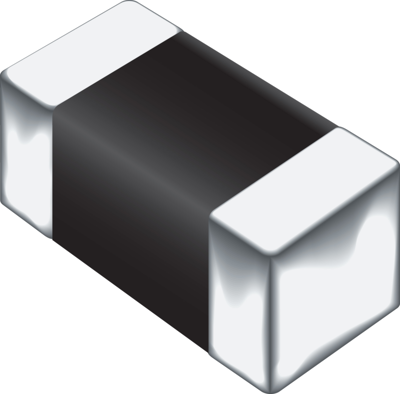

Varistor, SMD 0402, 18 V (DC), 8.5 V (AC), CG0402MLE-18G
Order No.: 06E8286
EAN: 4099879984012
MPN:
CG0402MLE-18G
Unit Price (€ / pc.)
0.0488 € *
Standard delivery time from the manufacturer is: 18 Weeks
ESD Clamp protector, CG0402MLE-18G, Bourns Electronics GmbH
The CG0402MLE-18G has been designed to provide high frequency attenuation, thereby providing suppression and filtering in a single device.It also offers protection to ESD standards such as IEC61000-4-2 for applications requiring up to 18 V DC.
Features
- Withstands multiple ESD strikes
- Low capacitance and leakage currents for invisible load protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 18 V | |
| max. operating temperature | 125 °C | |
| Rated voltage (AC) | 8.5 V | |
| min. operating temperature | -55 °C | |
| Design | SMD 0402 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Original Packaging | Reel with 10,000 pieces |
| Customs tariff number | 85334090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
